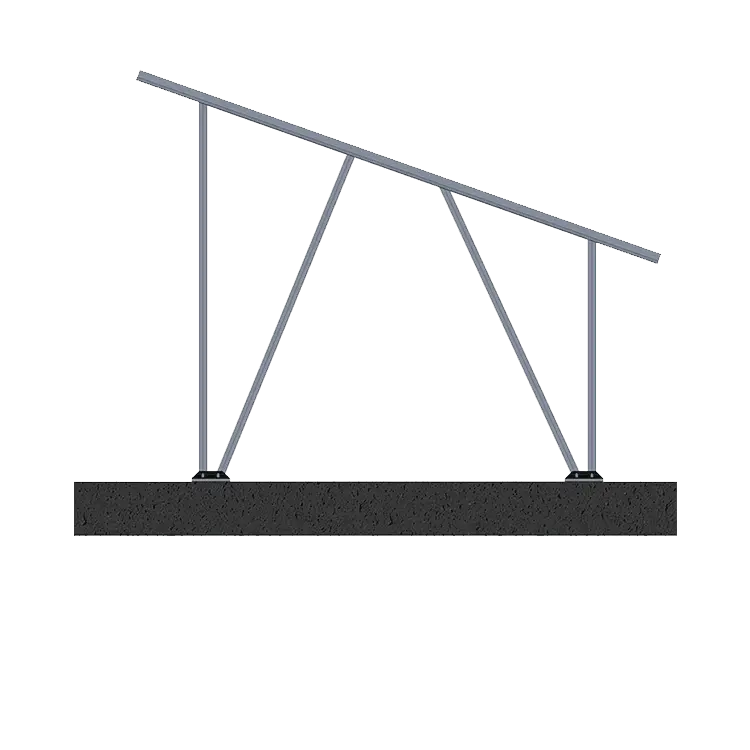

Flat Rooftop Mounting Structure

FEATURES & BENEFITS

  • Unique Hot-dip galvanization properties (hot-dipped in a molten bath of zinc, Aluminum & Magnesium).
  • Corrosion resistance performance is up to 3 times better than Zinc coated steel.
  • 20 years anti-corrosion warranty.
  • The best-suited protection to withstand harsh environments.
  • Self-repairing protection for cut edges.
  • Customized designs to fit your applications.
  • Compatible with all types of modules.

TECHNICAL DATA

  • Installation Site: Asphalt or Concrete roofs and grounds.
  • Tilt angle: 0-15
  • Applicable Temperature: – 50 C° to 100 C°.
  • Structure Materials: Hot-dip galvanized by Magnelis, Hot-Dip Galvanized Steel, and Stainless Steel.
  • Basic Wind Speed: 120km/hr (can be optimized from 120km/hr up to 160km/hr).
  • Design Snow Pressure: according to site elevation above sea level.
  • Warranty: 10 years.
  • Design Standards: Jordanian loads and weights code, ASCE, AISC, and ASIS & BS.



Download Data Sheet Here.
