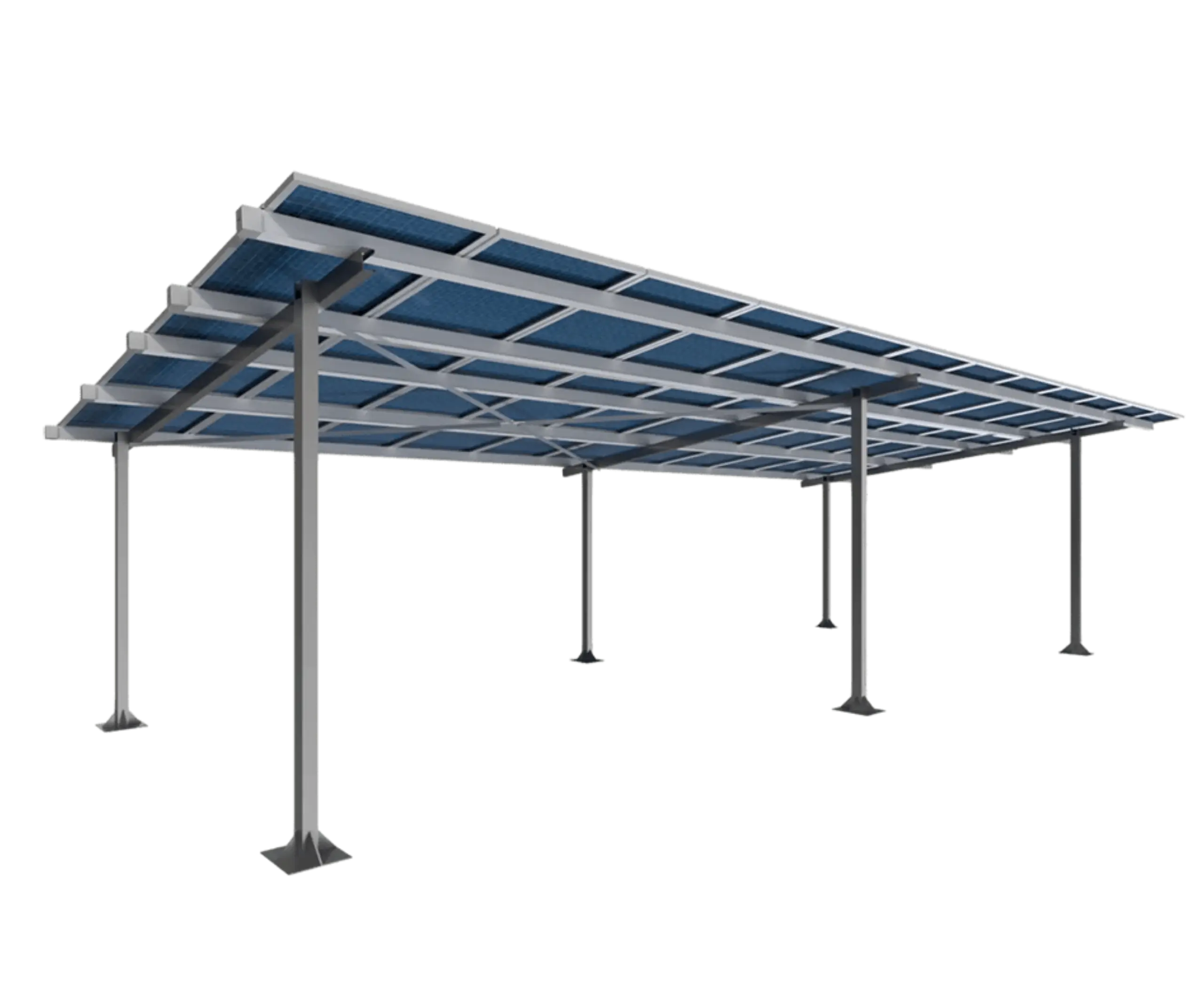

Canopy Mounting Structure

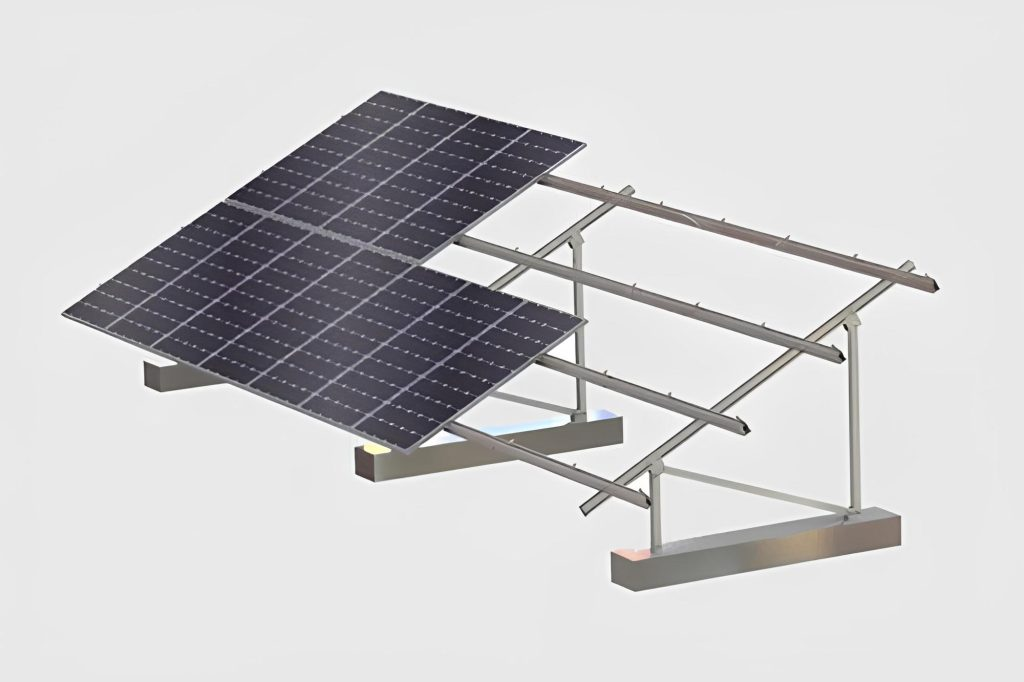

Canopy Mounting Structure Image 2

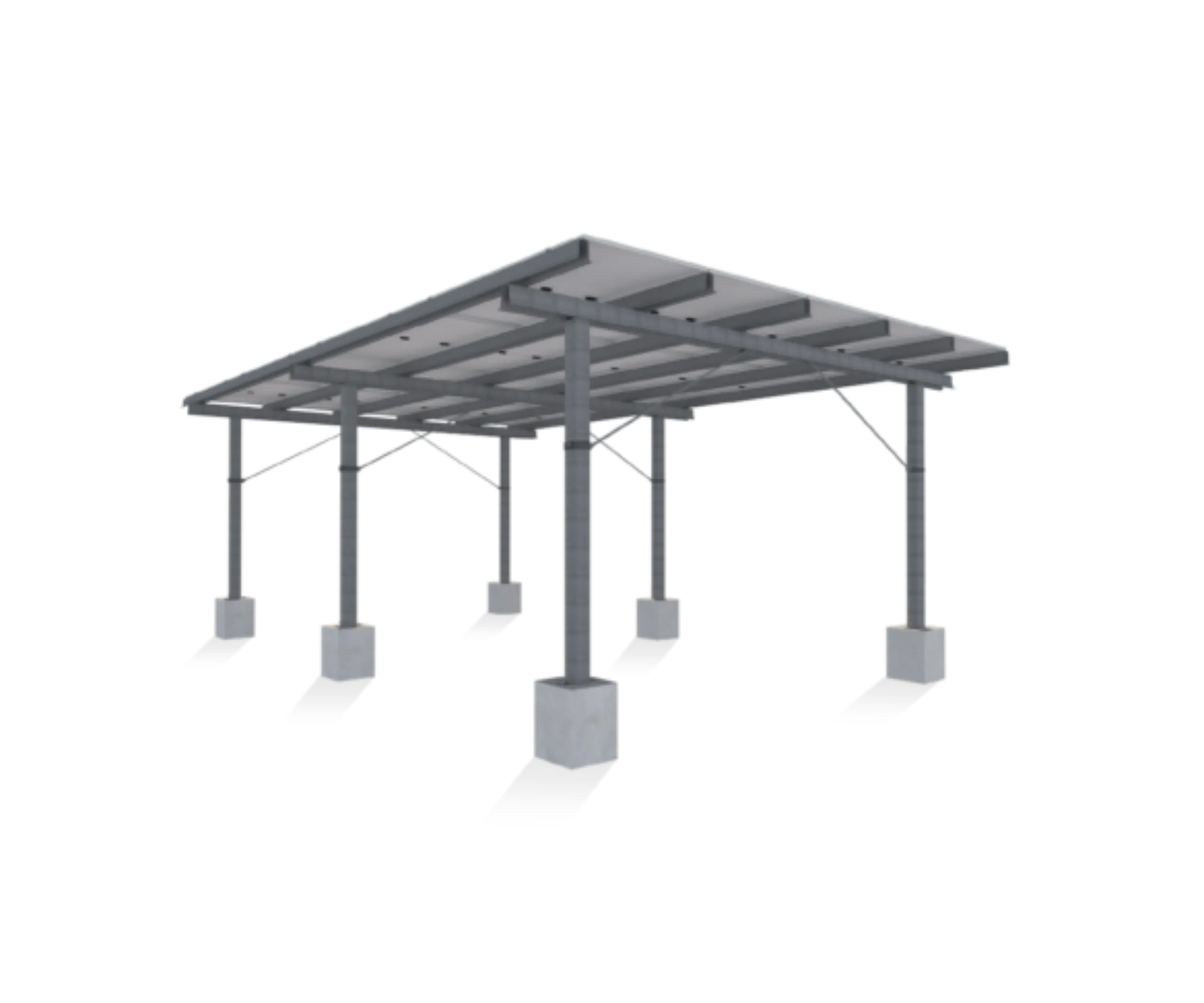

Canopy Mounting Structure Image 3
PS MNB108(HCBF) 445W – 460W

PS- MNB108(HCBF) 445W – 460W

Sold out
Carpark Mounting Structure

Carpark Mounting Structure

Sold out

Canopy Mounting StructurePV Mounting Structure

Features & Benefits

Warranty Icon

20-Year Anti-Corrosion Warranty
Assembly Icon

Fastest Possible Assembly with Minimum Employees
Corrosion Icon

Superior corrosion resistance (Magnelis)
Self-Healing Icon

Self-healing protection for cut edges ensuring structural integrity
Wind Icon

Engineered to Withstand High Wind Speeds Based on Client Requirements
Standards Icon

Compliant with international standards: ASCE, AISC, IBC, and British Code
📄
Download Structure Datasheet (PDF)
Steel Mounting Structures 1
BrandPV Mounting Structure
Categories



Philadelphia Solar’s Canopy Mounting Structure is a versatile solution designed for both asphalt and concrete surfaces.
Engineered to withstand harsh environments, it provides a stable and durable foundation for any solar application



Applications

Residential Solar Icon


On-Grid Residential Roof-Tops


Suitable for residential solar installations requiring a stable and durable canopy mounting solution.

Commercial Solar Icon


On-Grid Commercial / Industrial Roof-Tops


Designed for commercial and industrial solar projects requiring dependable structural performance and long-term durability.

Power Plants Icon


Solar Power Plants


Suitable for solar power projects requiring a strong, stable, and adaptable canopy mounting structure.

Off-grid Lighting Icon


Off-Grid Systems


Suitable for off-grid solar applications, including lighting systems and remote energy installations.


(Including Lighting Systems)

Additional information

Installation Site:

Asphalt or Concrete roofs and grounds.
Tilt Angle:

Customized based on the client's region.
Applicable Temperature:

-50°C to 100°C
Structure Materials:

High-quality Magnelis and Hot Roll Sections (based on request).
Basic Wind Speed:

Tailored to meet client and site requirements.
Design Snow Pressure:

Calculated according to site elevation above sea level.
Design Standards:

Compliant with British loads code, ASCE, AISC, and IBC.

  • What makes the Canopy structure's corrosion resistance superior?

    • It utilizes Magnelis coating, which provides up to 3 times better protection against corrosion than standard Hot-Dip Galvanized steel.



  • Is the structure protected against cuts or scratches during installation?

    • Yes, the material features self-healing protection for cut edges, ensuring the steel remains protected even after on-site modifications.



  • Can this structure be installed on both ground and rooftops?

    • Absolutely; it is designed for versatile installation on Asphalt or Concrete surfaces, whether on the ground or on building rooftops.



  • What is the maximum wind speed this system can handle?

    • The system is engineered to withstand high wind speeds, and can be customized to handle up to 160 km/hr based on site requirements.



  • What is the warranty period for this mounting system?

    • We offer a comprehensive 20-year anti-corrosion warranty and a 10-year warranty on all fittings and accessories.



  • Does the design comply with international building codes?

    • Yes, all designs are compliant with major international standards including ASCE, AISC, IBC, and the British loads code.



  • Can the tilt angle be customized for my specific project?

    • Yes, the tilt angle is fully customizable (typically between 0° to 15°) to ensure maximum energy yield based on your geographical location.
